Asus P5KPL-AM IN/OEM
SKU:3330805
- 3% off3% off for orders above $1500
$93.25
Availability In stock
Usually ready for shipment in 3 to 7 days.

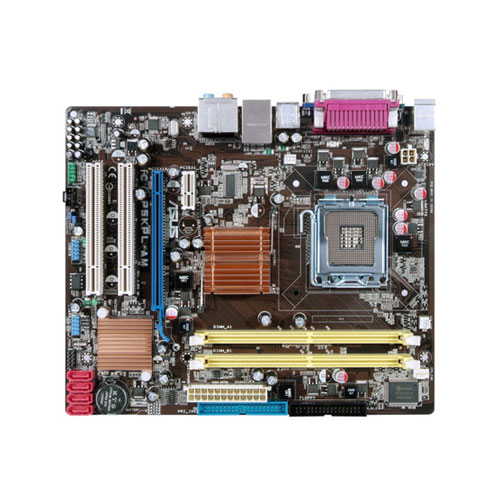

MB Asus / S775 / Intel G31 / 2DDR2(2ch) 800MHz Max4GB / VGA:256MB D-S
P5KPL-AM with Intel G31 chipset inside supports Intel Quad-core CPU and features 1600(OC)/1333/1066/800MHz FSB, PCI Express x 16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 1066(O.C.)/800/667 memory, and 8 Channel HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5KPL-AM is the most affordable all-in-one solution platform for Intel Core2 Processor with Intel G31 chipset inside.
- Processors compatible:
- Core2 Quad/Core2 Extreme/Core2 Duo/Pentium dual-core/Celeron dual-core /Celeron
- DVI-D ports quantity:
- 0
- Cables included:
- 1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
x SATA cable
1 SATA power cable - COM ports quantity:
- 1
- Processor family:
- Intel
- PS/2 ports quantity:
- 2
- Parallel ports quantity:
- 1
- Supported memory types:
- DDR2
- Number of Parallel ATA connectors:
- 1
- eSATA ports quantity:
- 0
- Floppy disk drive connector:
- Y
- CD/AUX audio in:
- Y
- Chassis intrusion connector:
- Y
- ATX Power connector (24-pin):
- Y
- CPU fan connector:
- Y
- Motherboard chipset:
- Intel G31 Express
- Power fan connector:
- Y
- S/PDIF out connector:
- Y
- USB 2.0 connectors:
- 2
- Number of SATA connectors:
- 4
- Number of DIMM slots:
- 2
- VGA (D-Sub) ports quantity:
- 1
- Processor socket:
- Socket 775
- Microphone, line-in jack:
- Y
- Ethernet LAN (RJ-45) ports quantity:
- 1
- Speaker/ headphone/ line-out jack:
- 1
- IEEE 1394/Firewire ports quantity:
- 0
- USB 2.0 ports quantity:
- 4
- Width:
- 224 mm
- Motherboard form factor:
- uATX
- Maximum internal memory:
- 4 GB
- Processor front side buses supported:
- 1600/1333/1066/800 MHz
- PCI Express x1 slots:
- 1
- PCI Express x16 slots:
- 1
- PCI slots:
- 2
- Depth:
- 203 mm
- Front panel audio connector:
- Y
- Source data-sheet:
- Icecat.biz
- Drivers included:
- Y
- Graphic adapter:
- GMA 3100
- Non-ECC:
- Y
- LAN controller:
- Realtek RTL8102EL
- Integrated graphics adapter (UMA/GMA):
- Y
- HDMI ports quantity:
- 0
- BIOS memory size:
- 8 MB
